The garage door cable system is one of the most critical components ensuring your garage door opens and closes safely and smoothly. While often overlooked, these cables work in tandem with springs, pulleys, and drums to balance the heavy weight of the door, prevent sudden drops, and provide reliable daily operation. Understanding how this system functions can help you spot issues early, perform basic maintenance, and know when to call in a professional.
This guide provides a detailed look at the mechanics behind garage door cables, the main parts involved, and how everything works together. For those interested in troubleshooting or preventing issues, you’ll also find tips and resources, including a helpful link to a garage door cable common problems article for quick fixes and solutions.
Key Components of a Garage Door Cable Mechanism
To understand the garage door cable system, it’s helpful to break down the main parts and their roles. Each part works together to ensure safe, balanced movement:
- Cables: Made of strong, flexible steel, these run along each side of the door and are responsible for lifting and lowering the door evenly.
- Drums: Located at the top corners, drums wind or unwind the cables as the door moves, keeping tension consistent.
- Pulleys: Used in extension spring systems, pulleys redirect the cable’s path and help maintain balance.
- Springs: Either torsion or extension springs store and release energy to counterbalance the door’s weight, reducing the force needed to lift it.
- Brackets and Fasteners: Secure the cables to the bottom of the door and to the system’s drums or pulleys.
Each of these elements must be in good condition for the system to function properly. If one fails, the entire operation can be compromised, leading to safety hazards or a stuck door.
How the Cable System Works in Daily Operation
When you open your garage door, the process is more complex than it appears. Here’s a step-by-step breakdown of how the cable system operates:
- As the opener or manual lift is engaged, the springs begin to unwind (torsion) or stretch (extension), releasing stored energy.
- This energy is transferred to the cables, which are wound around the drums at the top of the door.
- The cables pull the door upward, guided by tracks, while the springs offset the door’s weight.
- When closing, the process reverses: the door’s weight rewinds the cables onto the drums, and the springs re-tension, storing energy for the next lift.
This system ensures the door moves smoothly and prevents it from slamming down if a spring or cable fails. For a more technical explanation, you can read the role of the garage door cable and how it works for additional insights.
Types of Garage Door Cable Systems
There are two primary types of cable systems, each suited to a different kind of spring:

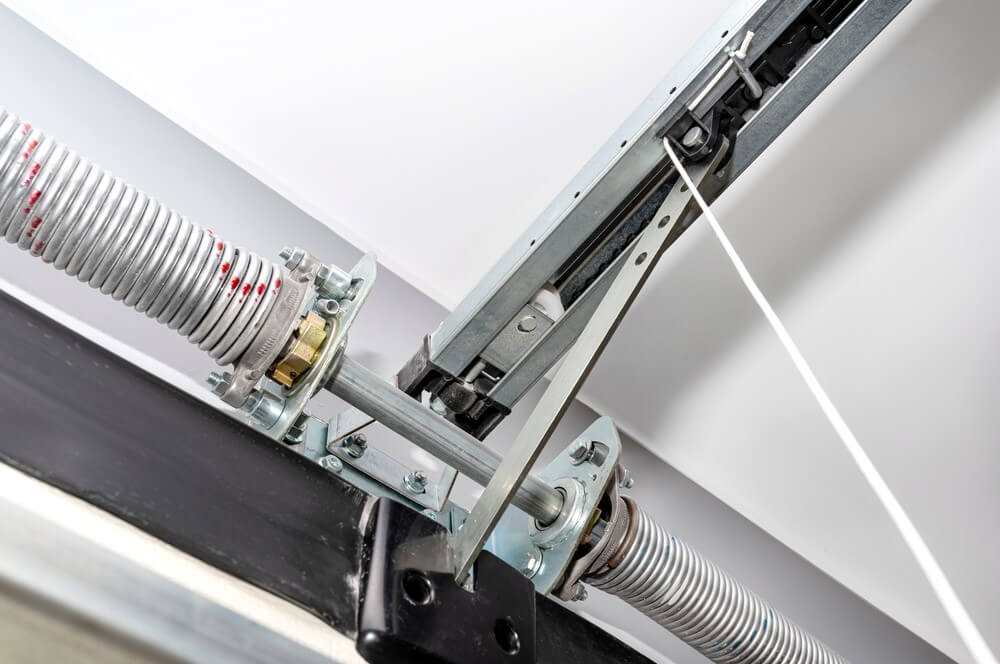

- Torsion Spring Cable System: Most modern doors use torsion springs mounted above the door. The cables attach to the bottom brackets and wind around drums as the springs turn, providing smooth, controlled lifting.
- Extension Spring Cable System: Older or lighter doors may use extension springs along the horizontal tracks. Here, cables run through pulleys and stretch the springs as the door moves, balancing the load.
Both systems rely on the same basic principle: cables and springs working together to offset the door’s weight. However, the hardware layout and maintenance needs can differ. For professional advice on system selection or upgrades, check out the garage door cable professional guide.
Common Issues and Maintenance Tips
Even the best cable systems can develop problems over time. Here are some typical issues and how to address them:
- Frayed or Broken Cables: Inspect cables regularly for visible wear, rust, or broken strands. Replace immediately if damaged.
- Loose Drums or Pulleys: Listen for unusual noises or jerky movement. Tighten hardware and lubricate moving parts as needed.
- Misaligned Tracks: If the door binds or comes off track, cables may slip or tangle. Realign tracks and check cable tension.
- Spring Failure: If the door feels heavy or won’t stay open, springs may be worn out. Replacing springs is dangerous—call a professional.
For more troubleshooting and prevention strategies, the garage door cable prevention tips resource provides practical advice to avoid costly breakdowns.
How to Tell If Your Cable System Needs Attention
Recognizing early warning signs can prevent more serious problems. Watch for these indicators:
- The door moves unevenly or appears crooked when opening or closing.
- You hear loud snapping, grinding, or squealing noises.
- The door feels unusually heavy or won’t stay up when lifted manually.
- Visible rust, fraying, or slack in the cables.
If you notice any of these symptoms, it’s wise to consult a technician or refer to a garage door cable replacement checklist to determine the next steps. Regular inspections and prompt repairs help maintain safety and prolong the life of your system.
Benefits of a Well-Maintained Cable System
Keeping your garage door cables in top shape offers several advantages:
- Safety: Prevents sudden door drops and reduces risk of injury.
- Reliability: Ensures smooth, consistent operation every time you use the door.
- Longevity: Reduces wear on other components, extending the lifespan of the entire system.
- Cost Savings: Avoids expensive emergency repairs and replacements.
For more on optimizing your setup, see the garage door cable efficiency guide for tips on smooth, effortless lifting.
FAQ
What happens if a garage door cable breaks?
If a cable snaps, the door may become unbalanced and could drop suddenly, posing a serious safety risk. In most cases, the door will not open or close properly. It’s important to stop using the door and have the cables replaced by a professional.
Can I replace garage door cables myself?
While some experienced DIYers may attempt cable replacement, it’s generally not recommended due to the high tension in the springs and risk of injury. Professional technicians have the tools and expertise to handle the job safely.
How often should garage door cables be inspected?
It’s wise to visually inspect cables at least twice a year for signs of wear, rust, or fraying. Annual professional maintenance is also recommended to catch issues early and ensure all components are working together correctly.
Are there different cables for torsion and extension spring systems?
Yes, the length and configuration of cables differ depending on the type of spring system. Always use the correct cable type for your specific setup to ensure safe and reliable operation.
Conclusion
Understanding the mechanics behind your garage door cable system can help you maintain a safe, reliable entryway for years to come. Regular inspection, timely repairs, and choosing the right replacement parts are key to avoiding unexpected breakdowns. For more in-depth technical details or troubleshooting, explore the linked resources throughout this article. By staying informed and proactive, you’ll keep your garage door operating smoothly and safely every day.
